Water Dog WD2 Linear
Block & Rail

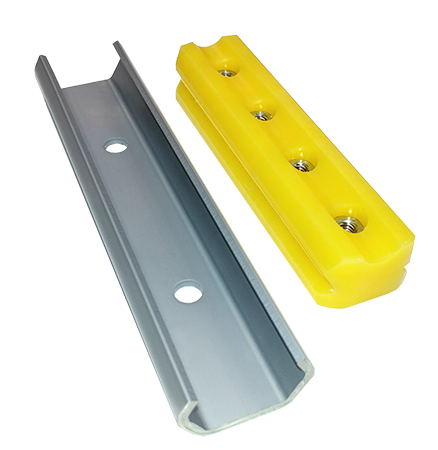

FDA/USDA Compliant Water Dog WD2 FDA /Caustic Washdown Compliant linear block and stainless channel rail
excels in: FDA Compliant, Washdown, Inclusion Resistant - Chlorine Dilution Friendly - Applications. The Waterdog WD2
Slider is very robust and rugged.



The Many Advantages of Water Dog Linear Sliders:



300 Series Stainless Guide Channel

WD2 Block is FDA and caustic Washdown Compliant
Low Friction and Loves Liquids - lowers Frictional Characteristics Dramatically
Resists Edge Loading unlike Standard Sleeve-Style Linear Bearings
WD2 Blocks will not Allow Media/Debris to Imbed or Adhere to its Surface
WD2 Blocks have 3 Times the Abrasion Resistance of Steel
WD2 Blocks have Flush Channel which allows Debris to be Easily Evacuated
Easy to Install
Chemically Inert
Captured Block-in-Rail Design

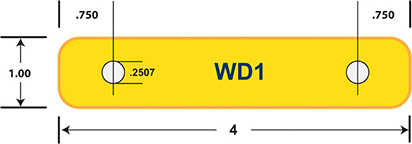

lock & Rail
A B C D E
1.02 1.00 1.00 .750 .255
Operating Temp:  - 400 / +180F

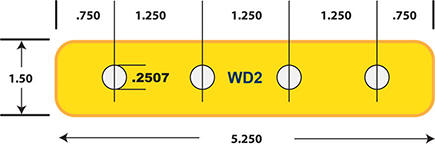

WD2 Slider Block & Rail
A B C D E
1.55 1.50 1.125 1.125 .354
Operating Temp:  - 400 / +180F



WD2.5 Slider Block & Rail
A B C D E
1.55 1.50 1.125 1.125 .354
Operating Temp:  - 400 / +180F
